Print Speed
19.3 sec/A1; 180 A1/hr
Scanning
Integrated 600 DPI 36″/A0 scanner
Memory
128 GB
Hard Drive
500 GB
HP Warranty
2 to 5 years

Models in this series

  • HP DesignJet XL 3600dr 36-in Multifunction Printer

    Roll maximum input
    2
    Weight
    170 kg
    Package weight
    220 kg
    Finished output handling
    Sheet feed, spindle-less drawers, two automatic front-loading roll feeds, smart roll switching, integrated output stacker , media bin, automatic horizontal cutter; Scanner: straight-through scan paper path for sheet and cardboard originals
  • HP DesignJet XL 3600 36-in Multifunction Printer

    Roll maximum input
    1
    Weight
    154 kg
    Package weight
    203 kg
    Finished output handling
    Sheet feed, spindle-less drawers, automatic front-loading roll feed, integrated output stacker , media bin, automatic horizontal cutter; Scanner: straight-through scan paper path for sheet and cardboard originals

Tell us which one you are pricing and we will quote that machine rather than the range.

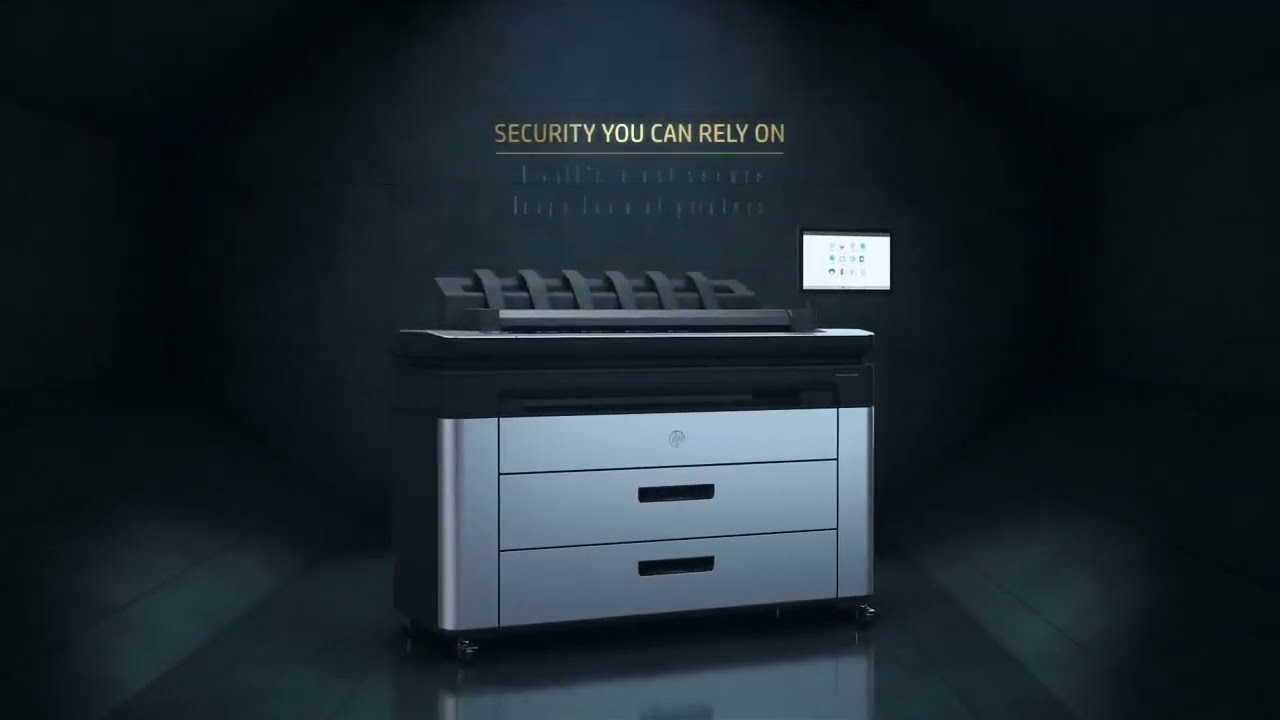

A New Standard in Extreme Reliability

Built with the most robust design for demanding environments. The HP DesignJet XL 3600 is the best fit for your office with up to 30% smaller footprint and the most quiet operation. Flawless user experience thanks to automatic media loading and print stacking up to 100 pages. Get the lowest running costs, with mono and colour prints at the same price and using up to 10X less energy.

Secure Large-Format Printing with Network Protection

Rely on the best network protection with features like HP Secure Boot and whitelisting. Control who accesses the HP DesignJet XL 3600 and its confidential documents with secure user authentication. Keep your fleet secure at any time with HP JetAdvantage Security Manager.

Specifications

Questions people ask

How wide does it print, and how fast?

Up to 914 mm (36 in) wide, at 180 A1 prints an hour, three drawings a minute, on a six-ink set. Those are HP's figures in draft mode on plain bond, which is what a drawing office prints all day — a presentation set on coated paper takes longer, and the spec table on this page lists every mode.

Will it print from AutoCAD and Revit without a conversion step?

Yes. The DesignJet range speaks HP-GL/2 and PDF natively and ships with drivers for AutoCAD and Revit, so drawings print from the application rather than through an export step. It reads the line weights and the pen tables you already use. If your office standardised on PostScript, check the model — on this range PostScript is a specific version rather than something every unit has, and it is worth confirming before the order goes in.

Do we need the multifunction version?

The multifunction version adds an integrated scanner, which matters if you copy marked-up drawings or archive signed prints. If drawings only ever leave the office as prints, the plain printer does the same printing for less. The scanner cannot be retrofitted later, so it is a decision made at purchase.

How is the XL 3600 different from the T2600 and the XL 3800?

The XL 3600 prints, scans and copies, and comes as the 3600 or the 3600dr with a second roll. Against the T2600 it is built for a print room rather than an office — a higher duty cycle and a stacker on the front. The XL 3800 above it is twice the speed on four inks.

What does it cost to run?

It depends on what you print. Ink use moves with coverage, and media is the larger cost on most jobs and is bought separately whatever way the machine is financed. Rather than guess, tell us what you print in a normal month and we will work it out against your own volume. If you want one predictable figure instead of three variable ones, that is what Pay Per Use is for.

Can I see it print my own file before I commit?

Yes. Bring the file you are worried about to the Midcomp Innovation Hub in Ferndale and run it on the machine, on the substrate you actually use, and take the sample away. It is by appointment so the machine and a specialist are both free when you arrive.

What happens if it breaks down?

Midcomp services what it sells, from Johannesburg, Cape Town and Durban. If the machine is on Pay Per Use and it stops, its work can be run at the Innovation Hub while it is repaired, by arrangement — so a fault does not have to become a missed deadline.
